Stonex S9II GPS Receiver UM980 Board Gnss Rtk

Name: Stonex S9II GPS Receiver UM980 Board Gnss Rtk
Brand: Stonex
Price: 1 USD

Buy cheap Stonex S9II GPS Receiver UM980 Board Gnss Rtk product

Available : Hard Plastic Case

Package Size : 55cm * 45cm * 70cm

Channels : 1408

HS Code : 8526919090

Package Gross Weight : 30kg

Brand Name : Stonex

Model Number : S9II

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000 per year

Packaging Details : With Standard Packing Way

Customization : Available

IMUT Tilt Sensor : Yes

Contact Now

High Precision Survey Instruments Stonex S9II GNSS RTK GPS Receiver Base and Rover with UM980 main board and 1408 channels Tilt sensor IMU function

Stonex S9II GPS Receiver UM980 Board Gnss Rtk

Equipped with an advanced 1408 channels GNSS board and capable of supporting multiple satellite constellations, including GPS, GLONASS, BEIDOU and GALILEO, Stonex S3II GNSS receiver is an ideal solution for any surveying field work. The advanced receiver design gives S3II excellent signal tracking ability and interference resistant capacity.

The independent R&D LINUX+CORTEX intelligent platform provides users high performance computing and infinitely expanding. The unique internal antenna combines GNSS, Bluetooth and Wi-Fi integrated modules to optimize space and increase performance.

Advantages of portability and speed of operation make S3II GNSS receiver particularly suitable for fieldwork in areas of complex terrain. The Stonex S3II has built-in internal Bluethooth capability that allows the users to choose their data collector model and software.

Stonex S9II GPS Receiver UM980 Board Gnss Rtk

Model	S9II
Satellite system	Beidou+GPS+GLONASS+ Galileo
Track features	Channel	1408
	GPS	L1 C/A,L2E,L2C,L5
	GLONASS	L1 C/A, L1P, L2 C/A(GLONASS M), L2P
	BDS	B1,B2
	GIOVE-A	L1 BOC, E5A, E5B, E5AltBOC1
	GIOVE-B	L1 CBOC, E5A, E5B, E5AltBOC1
	SBAS	WASS,MSAS,ENGOS,QZSS
Performance indicators	Static measurement of plane precision.	±(2.5mm + 1ppm)RMS
	Static measurement elevation accuracy.	±(5mm + 1ppm)RMS
	RTK measures plane precision.	±(10mm + 1ppm)RMS
	RTK measures elevation accuracy.	±(20mm + 1ppm)RMS
	SBASPositioning (typical)	Plane precision <1m 3DRMS
		Elevation accuracy <5m 3DRMS
	Initialization time	<10s
	Initialization reliability	>99.99%
Environmental indicators	Working temperature	- 30ºC~+65ºC
	Storage temperature	- 40ºC~+80ºC
	Waterproof and dustproof	IP67
	drop	Resistance to 2 m drop (concrete hard ground)
	Waterproof	Immersing 1 meter in water (30 minutes)
	humidity	100% condensation resistance
Memory and data	Internal Storage	Onboard 4G SD card expansion, maximum support 32G.
	differential output	RTCM2.3,RTCM3.0,RTCM3.X,CMR,CMR+
GNSS antenna performance	The internal integrated quad-feeder microstrip antenna, zero-phase center, built-in multipath suppression plate.
	bluetooth	built-in,V2.0 Class2
	Network communication	Built-in WCDMA 3.5G network communication module;Customizable CDMA2000 3G network communication.
Wireless communications	Communication protocol	TrimTalk is interchangeable with international brand radio and can be customized with domestic hosts.
	UHF radio	Built-in transceiver	0.5W/2W
		outer launch	5W/35W
		Working frequency	410-470MHZ
Physical and power characteristics.	size	φ19cm×9.9cm
	Weight	1.2kg
	Battery capacity	Single block 3400mAh
	keys	2
	service time	6 hours
industrial-grade controller P9	operating system	Windows Mobile 6.5
	Hardware platform	AM335X frequency 1GHz
	onboard memory	RAM:512MB DDR3 onboard memory 4G
	Display	3.7 inches Blanwiew TFT,480*640VGA resolution ratio
	Battery	7.2V/3400mAH
	Waterproof and dustproof	IP67
	Working temperature	- 30ºC~+60ºC
	Storage temperature	- 30ºC~+70ºC
	drop	Resistance to 2 m drop (concrete hard ground)
	camera	5 megapixel autofocus.
	communication	Wi-Fi bluetooth /USB OTG/3.5G

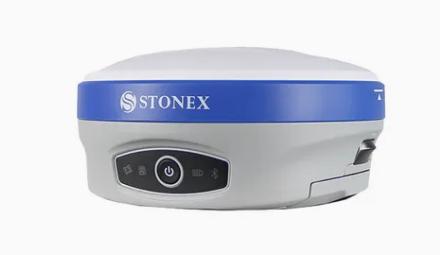

Stonex S9II GPS Receiver UM980 Board Gnss Rtk Images
